Micro RC Receiver DSMX/2 5A Brushless ESC SR3X 3-Axis Stabilizer

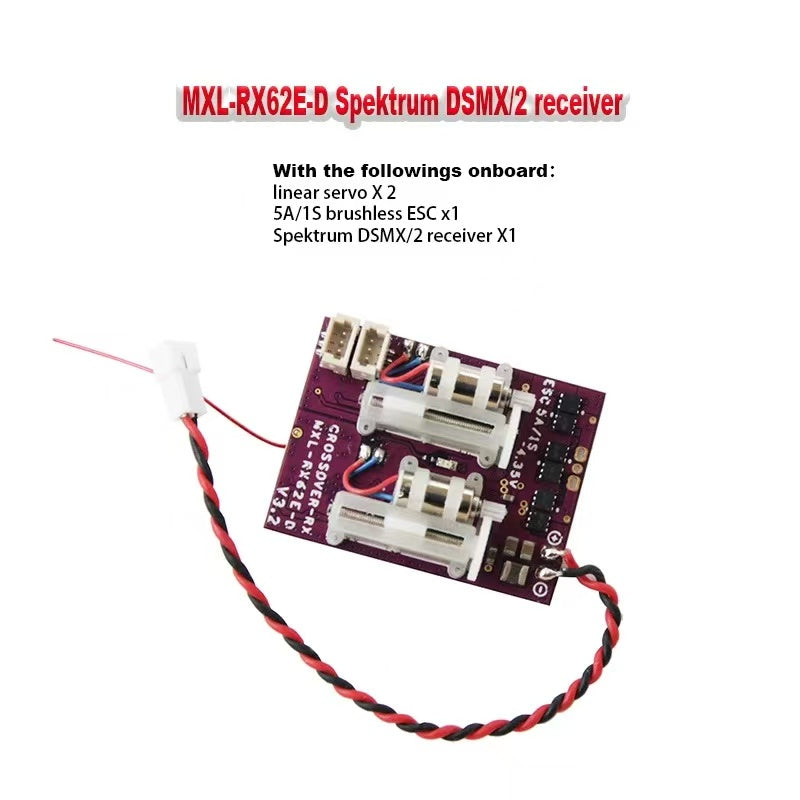

RX62E D

Product Introduction
Lightweight DSMX DSM2 receiver for 1S micro fixed wing aircraft Integrated SR3X three axis stabilization and 5A brushless ESC

Key Features
Two linear servo channels and two independent outputs

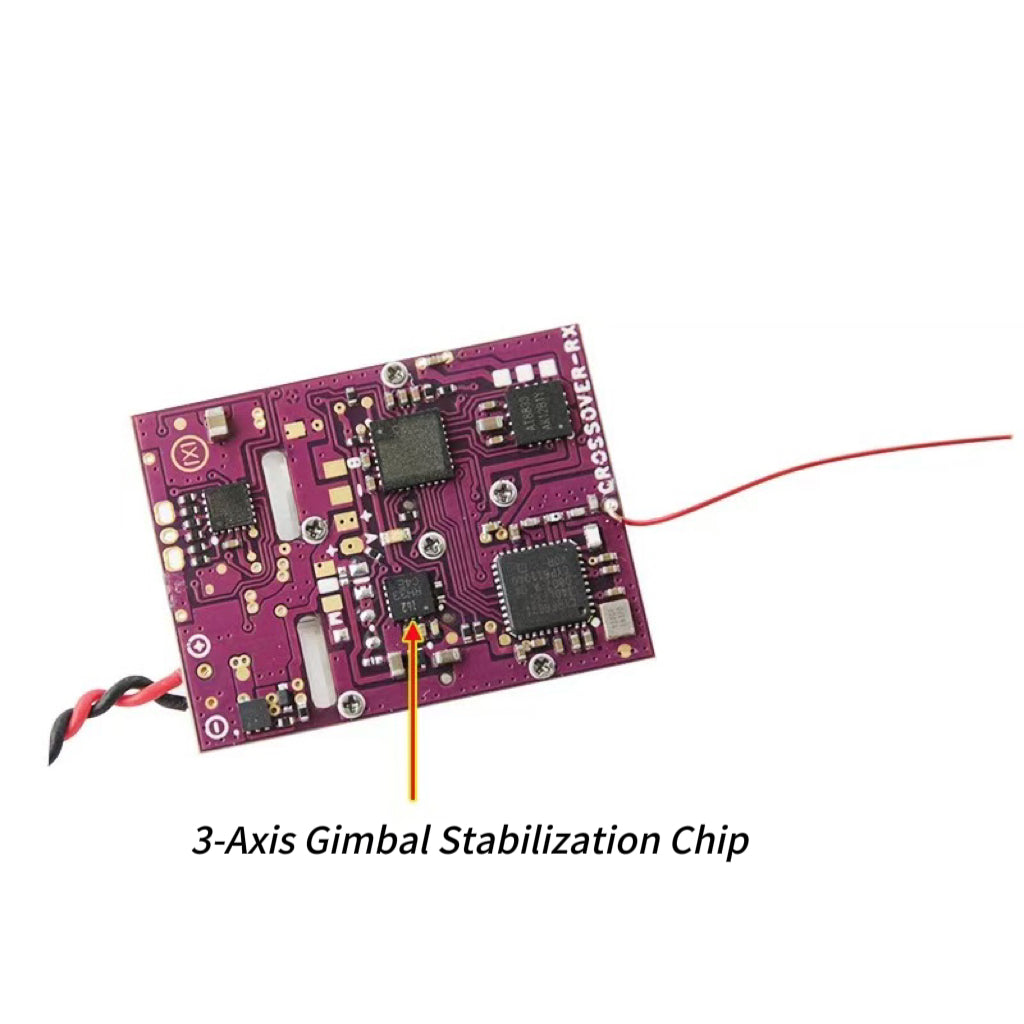

SR3X three axis stabilization Channel 5 selects off low gain high gain
Built in 5A 1S brushless ESC Throttle lowest unlock Red LED flashes

Instructions
Automatic bind if no signal in 10 seconds
Throttle lowest unlock ESC
Channel 5 selects stabilization mode Low gain recommended first flight

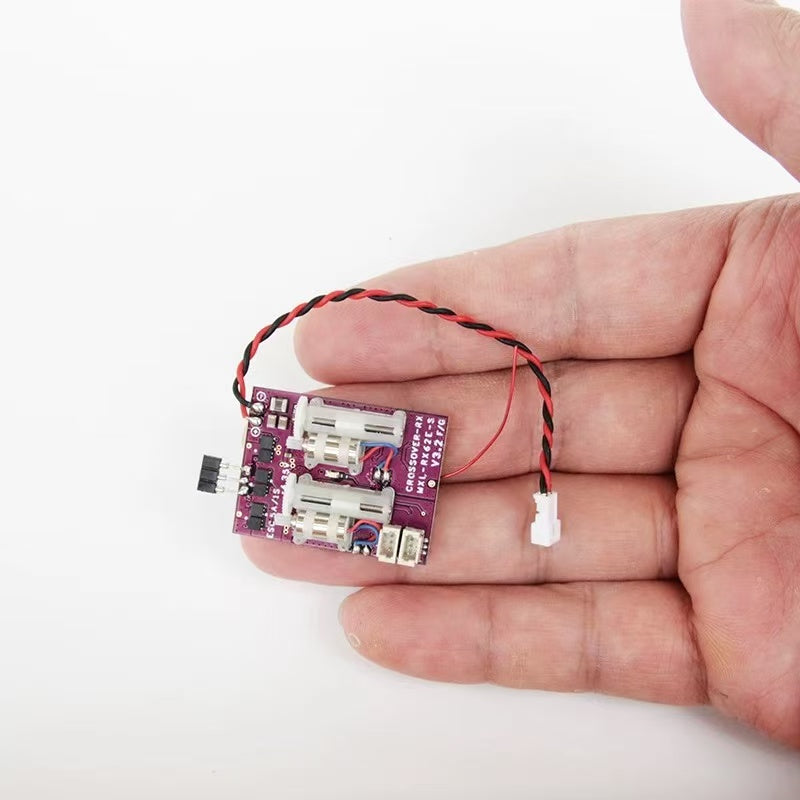

RX62E XL

Product Introduction
Extended version for larger micro fixed wing aircraft DSMX DSM2 SR3X three axis stabilization Built in 5A brushless ESC

Key Features
Two linear servo channels and two independent outputs
SR3X three axis stabilization Channel 5 off low gain high gain
Built in 5A 1S brushless ESC Throttle lowest unlock Red LED flashes

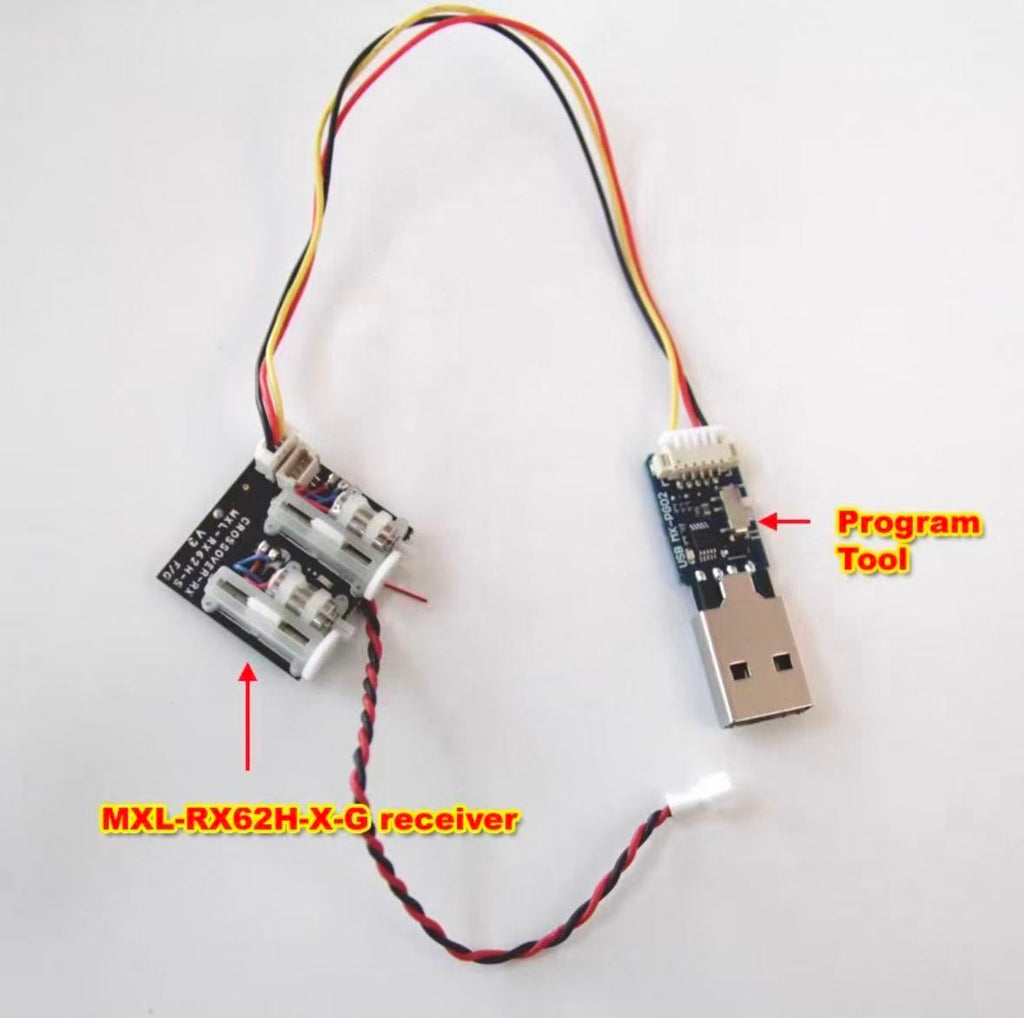

M BUS interface firmware updates channel SBUS future sensors

Instructions
Automatic bind if no signal
Throttle lowest unlock ESC
Channel 5 selects stabilization mode Low gain normal flight High gain strong stability outdoors
